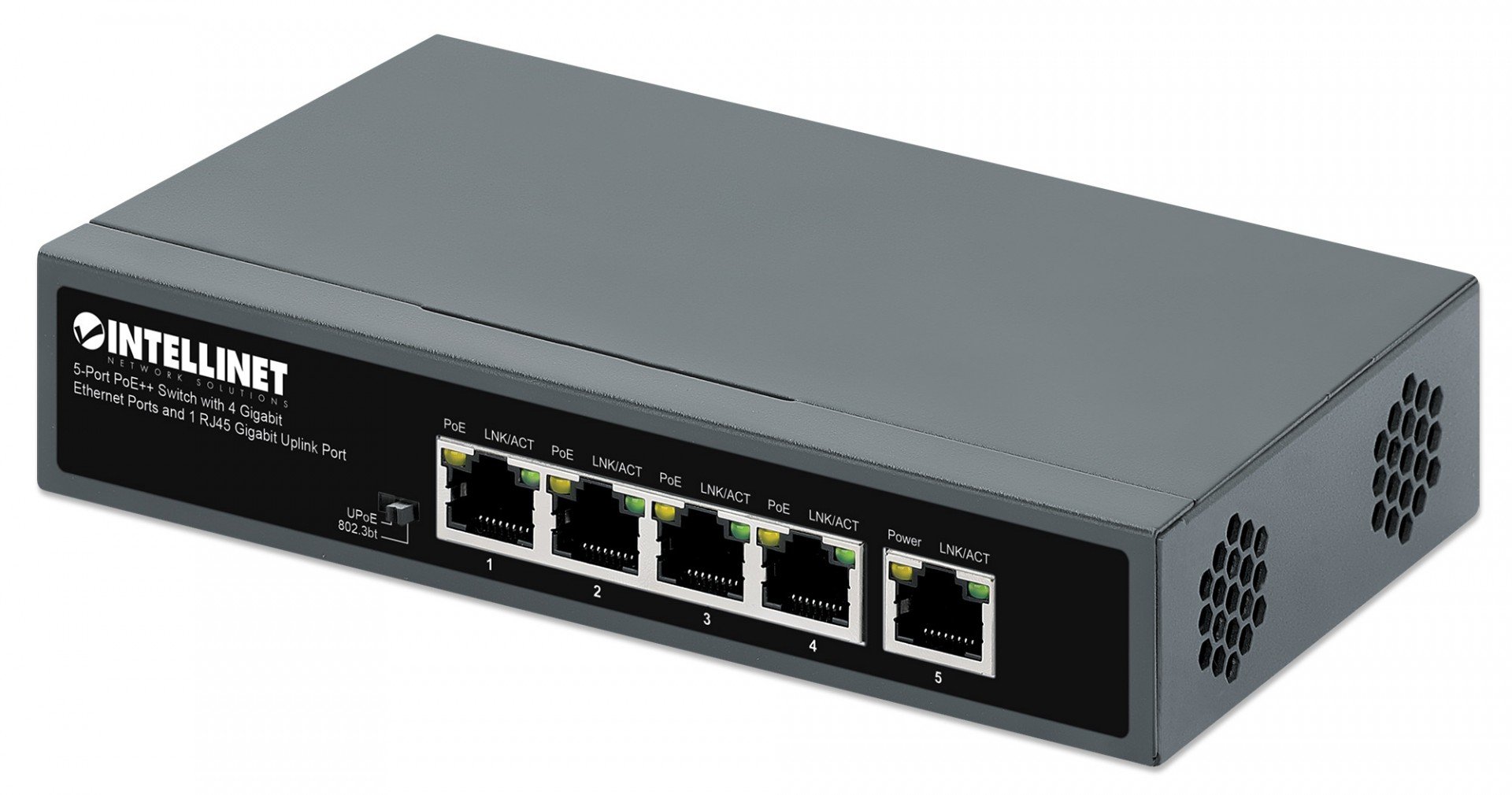

Intellinet 5-Port PoE++ Switch with 4 Gb + 1 RJ45 Gb Uplink-Port

Write a review

€215.35

Vendor: TASK LTD

Return period: 28 days

CODE: 562010

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Intellinet 562010. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 55 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Intellinet 5-Port PoE++ Switch with 4 Gb + 1 RJ45 Gb Uplink-Port
Product symbol	562010
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Intellinet
Package sizes (HxWxL)	32 x 168 x 94 mm
Weight gross	0.40 kg
Logistics data
Master (outer) case weight	15240.00 gram
Master (outer) case length	446.00 millimeter
Quantity per master (outer) case	10.00 pcs
Master (outer) case height	486.00 millimeter
Master (outer) case width	254.00 millimeter
Other features
Warranty period	3.00 years
Weight & dimensions
Height	32.00 millimeter
Width	168.00 millimeter
Depth	94.00 millimeter
Weight	395.00 gram
Power
Power source	DC/PoE
Power protection features	Over voltage Overload Short circuit Surge protection
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
DC input voltage	55 V
Power consumption (max)	150.00 W
Data transmission
Packet buffer memory	1.00 MB
Switching capacity	10.00 Gb/s
MAC address table	2000 entries
Forwarding rate	7.44 Mpps
Certificates
Certification	FCC, CE, RoHS, UKCA, NDAA
Packaging content
Cables included	AC
Packaging data
Package depth	240.00 millimeter
Package height	84.00 millimeter
Package width	226.00 millimeter
Package weight	1450.00 gram
Design
LED indicators	Activity, Link, PoE, Power
Product color	Black
Network
Networking standards	IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3u IEEE 802.3x
Cable types supported	Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Performance
Mean time between failures (MTBF)	50000.00 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	140.00 W
Management features
Switch layer	L2
Switch type	Unmanaged
