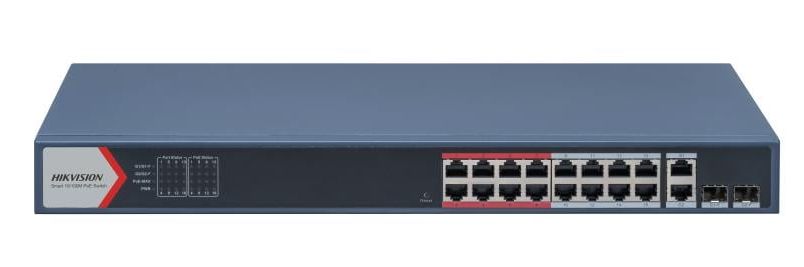

Hikvision DS-3E1318P-EI(B) 16 Port Fast Ethernet Smart POE Switch

Write a review

€279.98

Vendor: TASK LTD

Return period: 28 days

CODE: DS-3E1318P-EI(B)

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

The Hikvision DS-3E1318P-EI(B) is a state-of-the-art 16 Port Fast Ethernet Smart PoE Switch designed to enhance your network infrastructure. With 16 × 10/100 Mbps PoE ports and 2 × Gigabit combo ports, this switch provides versatile connectivity options to meet the demands of modern surveillance systems. The total PoE power budget of 230 W ensures that your devices receive adequate power, while the support for 802.1Q VLAN facilitates efficient network segmentation and management.

One of the standout features of the Hikvision DS-3E1318P-EI(B) is its PoE watchdogSTP/RSTP loop prevention and cable detection to quickly locate failures, enhancing overall network reliability. With up to 300 m Long Range PoE Transmission and 6 kV Surge Protection, this switch is engineered to provide robust performance in various environments, making it an ideal choice for both small and large-scale installations.

Basic data
Item name	Hikvision DS-3E1318P-EI(B) 16 Port Fast Ethernet Smart POE Switch
Product symbol	DS-3E1318P-EI(B)
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Hikvision
Package sizes (HxWxL)	540 x 320 x 100 mm
Weight gross	3.33 kg
Weight & dimensions
Height	44.00 millimeter
Width	440.00 millimeter
Depth	220.80 millimeter
Weight	2590.00 gram
Power
Power source	AC
Input current	4 A
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	250.00 W
Data transmission
Switching capacity	7.20 Gb/s
MAC address table	16000 entries
Forwarding rate	5.3568 Mpps
Certificates
Certification	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Packaging data
Package weight	3680.00 gram
Design
Housing material	Metal
Product color	Blue
Network
Networking standards	IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	230.00 W
Power over Ethernet (PoE) power per port	30.00 W
Management features
Switch type	Managed
