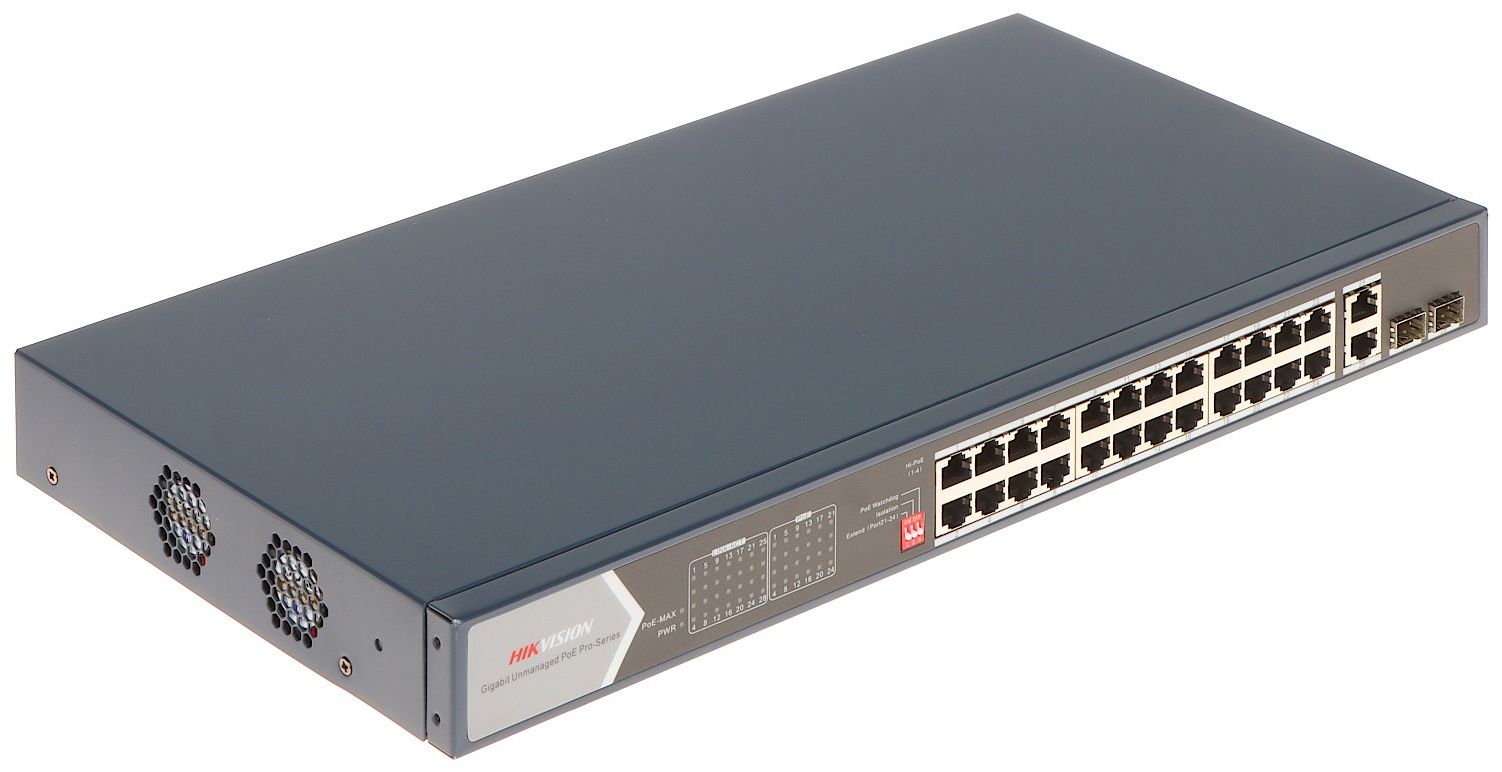

Hikvision DS-3E0528HP-E 24 Port Gigabit Unmanaged POE Switch

Write a review
673.03
TASK LTD
28 days
DS-3E0528HP-E
IN STOCK
+
This product is an unmanaged POE switch designed to facilitate efficient network configurations. It features 24 Gigabit Ethernet ports that provide high-speed connectivity and support for Power over Ethernet (PoE). With a total PoE power budget of 370 watts, it can effectively power multiple devices such as IP cameras, VoIP phones, and wireless access points directly through the network cables, simplifying installation and reducing cable clutter.

The device supports a maximum data transfer rate of 1000 Mbps, ensuring rapid transmission of information across the network. It is built to handle a switching capacity of 56 Gbps, which allows for the handling of large amounts of data without congestion. The switch operates on a simple plug-and-play setup, requiring no additional configuration, which makes it suitable for a variety of uses in both commercial and residential settings.

Its durable metal casing is designed to withstand rigorous use and its rack-mountable design allows for easy integration into standard server racks, making it a versatile addition to any network system. The switch also features fanless design for quiet operation.

Basic data
Item nameHikvision DS-3E0528HP-E 24 Port Gigabit Unmanaged POE Switch
Product symbolDS-3E0528HP-E
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • Hikvision
Package sizes (HxWxL)100 x 320 x 530 mm
Weight gross3.80 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 44.00 millimeter
Width
  • 440.00 millimeter
Depth
  • 220.80 millimeter
Weight
  • 2980.00 gram
Power
Input current
  • 6.5 A
AC input frequency
  • 50 - 60 Hz
AC input voltage
  • 100 - 240 V
Power consumption (max)
  • 400.00 W
Data transmission
Switching capacity
  • 56.00 Gb/s
MAC address table
  • 8000 entries
Forwarding rate
  • 41.664 Mpps
Certificates
Certification
  • FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006)
Design
Housing material
  • Metal
Product color
  • Blue
Network
Networking standards
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 370.00 W
Management features
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
