Hikvision DS-3E0510HP-E 8 Port Gigabit Unmanaged POE Switch

Write a review
112.35
TASK LTD
28 days
DS-3E0510HP-E
IN STOCK
+

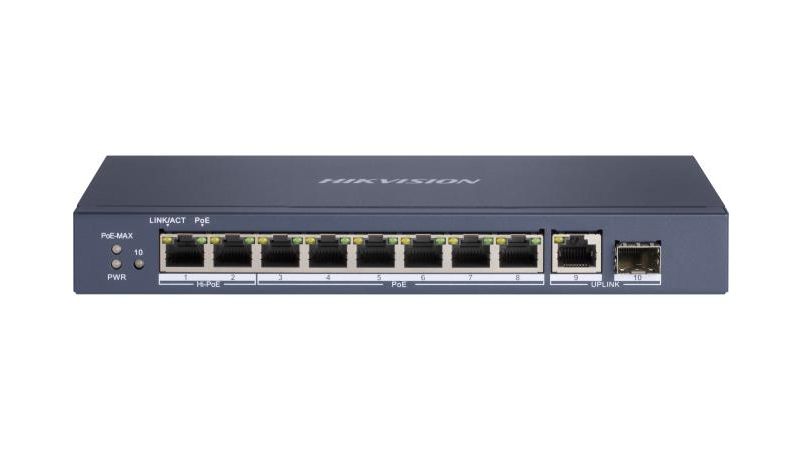

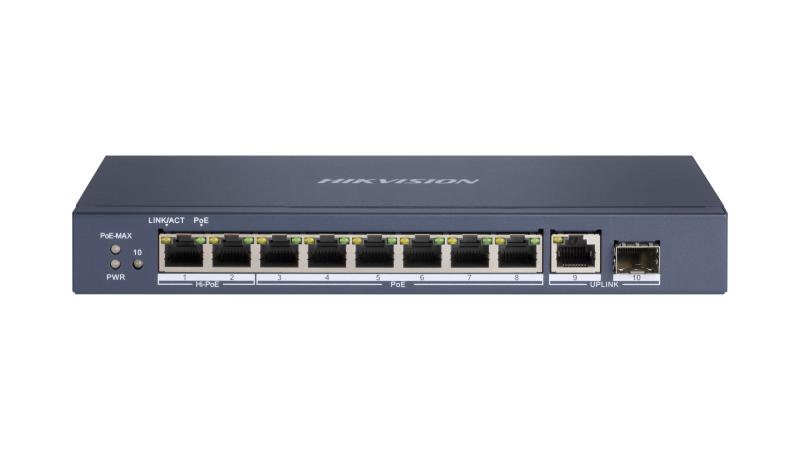

This device is an unmanaged POE switch equipped with eight Gigabit Ethernet ports, designed to facilitate high-speed network connections. Each port supports Power over Ethernet (PoE), allowing it to provide both electrical power and data connectivity to PoE-enabled devices through a single cable. This feature simplifies the cabling process and reduces the need for additional power sources.

The switch is capable of automatically detecting the required power for connected devices, ensuring a streamlined and efficient power distribution. It supports a maximum PoE power budget of 123 watts, making it suitable for a variety of devices such as IP cameras, VoIP phones, and wireless access points.

With a compact design, the switch is easy to install and fits well in various environments, including small offices and home networks. It operates silently, as it does not have a built-in fan, which also contributes to lower energy consumption. The robust metal casing enhances durability, offering a dependable solution for expanding network connectivity without the need for complex management tools.

Basic data
Item nameHikvision DS-3E0510HP-E 8 Port Gigabit Unmanaged POE Switch
Product symbolDS-3E0510HP-E
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • Hikvision
Package sizes (HxWxL)140 x 100 x 270 mm
Weight gross1.30 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 108.55 millimeter
Width
  • 217.60 millimeter
Depth
  • 27.80 millimeter
Weight
  • 590.00 gram
Power
Input current
  • 2.22 A
DC input voltage
  • 54 V
Power consumption (max)
  • 120.00 W
Data transmission
Switching capacity
  • 20.00 Gb/s
MAC address table
  • 4000 entries
Forwarding rate
  • 14.88 Mpps
Certificates
Certification
  • FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006)
Design
Housing material
  • Metal
Product color
  • Blue
Network
Networking standards
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 110.00 W
Management features
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
