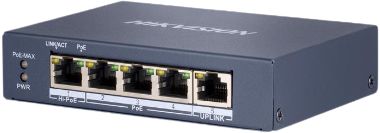

Hikvision DS-3E0505HP-E 4 Port Gigabit Unmanaged POE Switch

Write a review
91.85
TASK LTD
28 days
DS-3E0505HP-E
IN STOCK
+

The Hikvision DS-3E0505HP-E is a state-of-the-art 4 Port Gigabit Unmanaged POE Switch designed to meet the demands of modern networking environments. This model features 3 gigabit PoE ports, 1 gigabit Hi-PoE port, and 1 gigabit RJ45 port, providing versatile connectivity options for various devices. With compliance to the IEEE 802.3at/af/bt standards, the Hi-PoE port offers a maximum output of 60 W, while the standard PoE ports deliver up to 30 W each, ensuring efficient power distribution across your network.


One of the standout features of the Hikvision DS-3E0505HP-E is its 6 kV surge protection for PoE ports, which safeguards your devices from electrical surges, enhancing reliability and longevity. The switch supports long-range transmission up to 300 m, making it ideal for expansive installations. Additionally, the built-in PoE watchdog automatically detects and restarts unresponsive cameras, ensuring continuous operation and minimal downtime. The port isolation feature further enhances network security, making this switch a robust solution for both commercial and residential applications.


Constructed with a solid high-strength metal shell and a reliable fan-free design, the Hikvision DS-3E0505HP-E is built to withstand demanding environments while maintaining optimal performance. Its wire-speed forwarding and store-and-forward switching capabilities ensure efficient data handling, making it a superior choice for users seeking a dependable and high-performance networking solution.




Basic data
Item nameHikvision DS-3E0505HP-E 4 Port Gigabit Unmanaged POE Switch
Product symbolDS-3E0505HP-E
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • Hikvision
Package sizes (HxWxL)27.6 x 121 x 88.1 mm
Weight gross0.27 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 27.60 millimeter
Width
  • 121.00 millimeter
Depth
  • 88.10 millimeter
Weight
  • 270.00 gram
Power
Input current
  • 1.35 A
DC input voltage
  • 48 V
Power consumption (max)
  • 65.00 W
Data transmission
Switching capacity
  • 10.00 Gb/s
MAC address table
  • 2000 entries
Forwarding rate
  • 7.44 Mpps
Certificates
Certification
  • FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006)
Design
Housing material
  • Metal
Product color
  • Blue
Network
Networking standards
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3u
  • IEEE 802.3x
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 60.00 W
Management features
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
