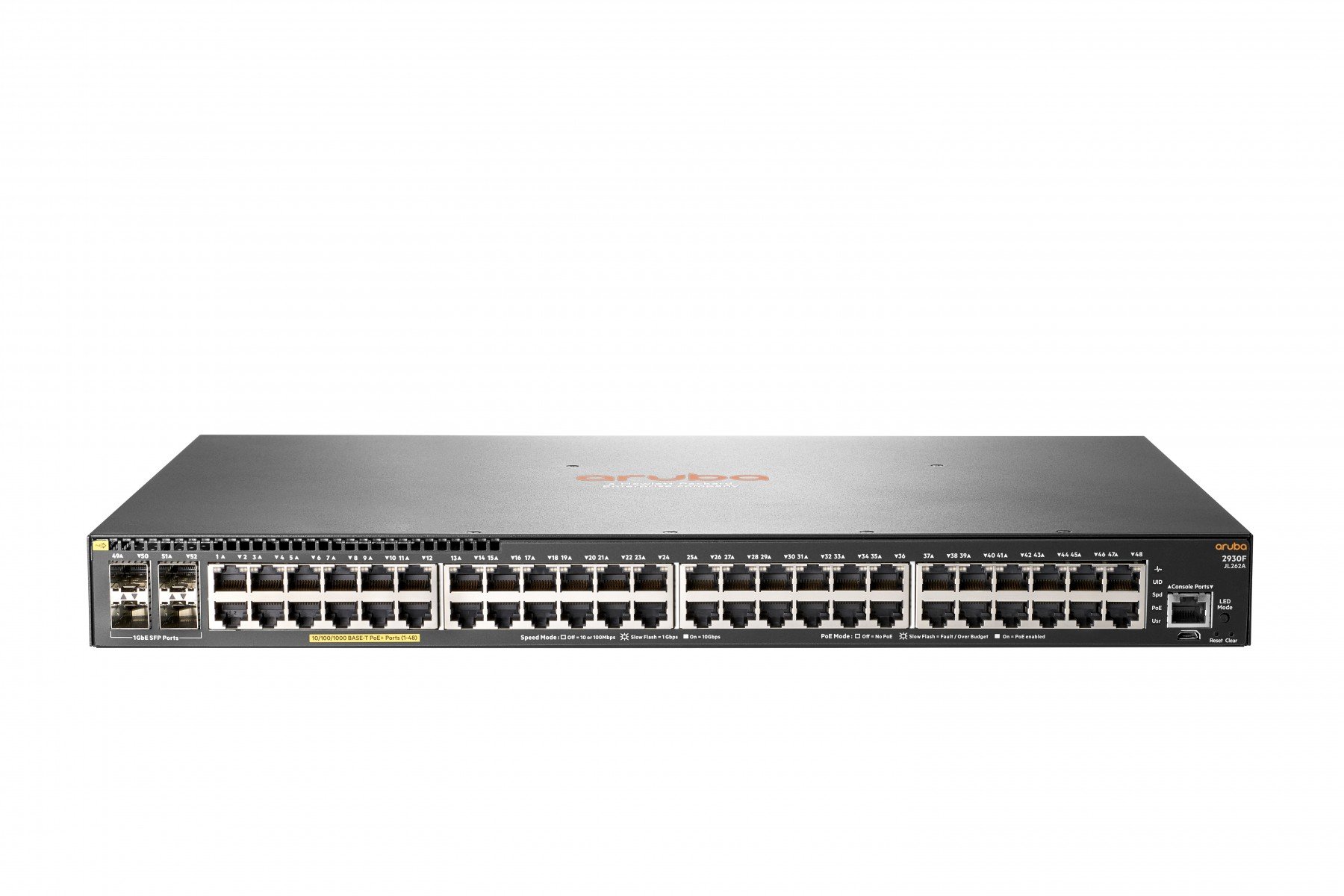

Aruba 2930F 48G PoE+ 4SFP Switch

The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.

HPE JL262A
HPE JL262A

High-Performance Access Layer Switches

  1. The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
  2. Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
  3. Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
  4. Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
  5. Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.

Performance and Power at the Edge

  1. The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
  2. Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
  3. Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.

Security and Quality of Service You Can Rely on

  1. The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
  2. Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
  3. Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplify with Integrated Wired/Wireless Management

  1. The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
  2. Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
  3. RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
  4. Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.


Basic data
Item nameHewlett Packard Enterprise Aruba 2930F 48G PoE+ 4SFP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey (JL262A)
Product symbolJL262A
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • HPE
Package sizes (HxWxL)120 x 420 x 570 mm
Weight gross6.50 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 43.90 millimeter
Width
  • 442.50 millimeter
Depth
  • 304.20 millimeter
Weight
  • 4460.00 gram
Power
Power consumption (typical)
  • 48.60 W
AC input frequency
  • 50 - 60 Hz
AC input voltage
  • 100 - 240 V
Power consumption (max)
  • 459.00 W
Data transmission
Packet buffer memory
  • 12.38 MB
Latency (1 Gbps)
  • 3.8 µs
Throughput
  • 77.4 Mpps
Switching capacity
  • 104.00 Gb/s
MAC address table
  • 32768 entries
Protocols
Routing protocols
  • IP
Operational conditions
Heat dissipation
  • 1566.00
Design
Form factor
  • 1U
Product color
  • Gray
Network
Networking standards
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3u
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
Performance
Processor frequency
  • 1016.00 MHz
Memory type
  • DDR3-SDRAM
Internal memory
  • 1024.00 MB
Processor model
  • ARM Cortex-A9
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 370.00 W
Security
DHCP features
  • DHCP server
Management features
Switch layer
  • L3
Switch type
  • Managed
