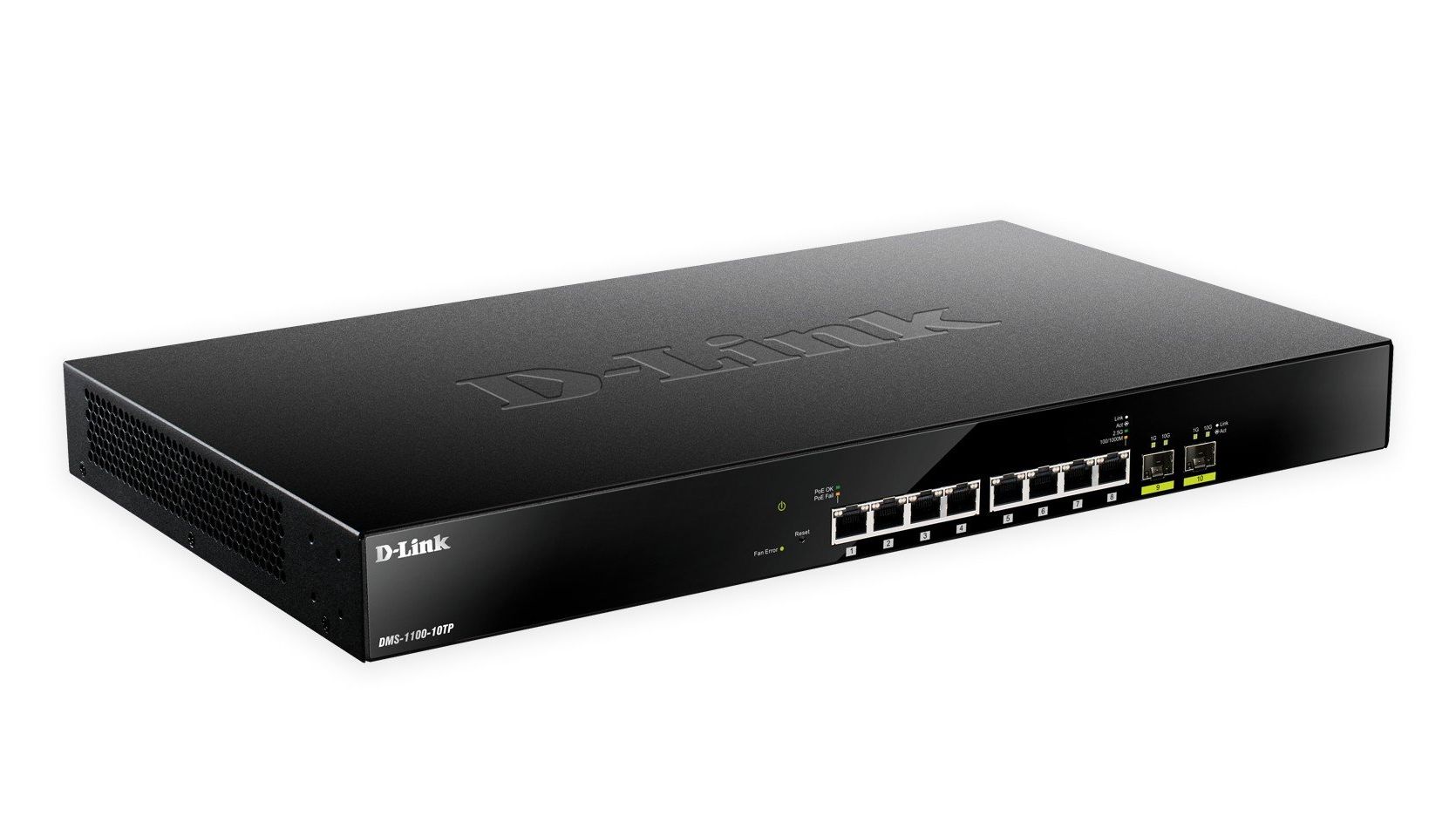

D-Link DMS-1100-10TP network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet ...

Write a review

€973.85

Vendor: TASK LTD

Return period: 28 days

CODE: DMS-1100-10TP

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

D-Link DMS-1100-10TP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	D-Link DMS-1100-10TP network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Product symbol	DMS-1100-10TP
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	D-Link
Package sizes (HxWxL)	370 x 90 x 510 mm
Weight gross	4.20 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	44.00 millimeter
Width	440.00 millimeter
Depth	250.00 millimeter
Weight	3430.00 gram
Power
AC input voltage	100 - 240 V
Power consumption (max)	293.40 W
Data transmission
Throughput	59.52 Mpps
Switching capacity	80.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	CE, FCC, C-Tick, VCCI, BSMI, CCC
Design
Number of fans	1 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Form factor	1U
LED indicators	Activity, Fan fail, Link, PoE, Power, Speed
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1w IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3bz IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Port-based VLAN Tagged VLAN Voice VLAN
Cable types supported	Cat5e
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Performance
Maximum cable length	100.00 meter
Mean time between failures (MTBF)	676329.00 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	240.00 W
Security
Queue scheduling algorithms	Deficit weighted round robin (DWRR) Strict Priority Queue (SPQ) Weighted Round Robin (WRR)
DHCP features	DHCP client
Security algorithms	SNMP SSL/TLS
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Management features
MIB support	RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II, RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II
Switch layer	L2
Switch type	Managed
