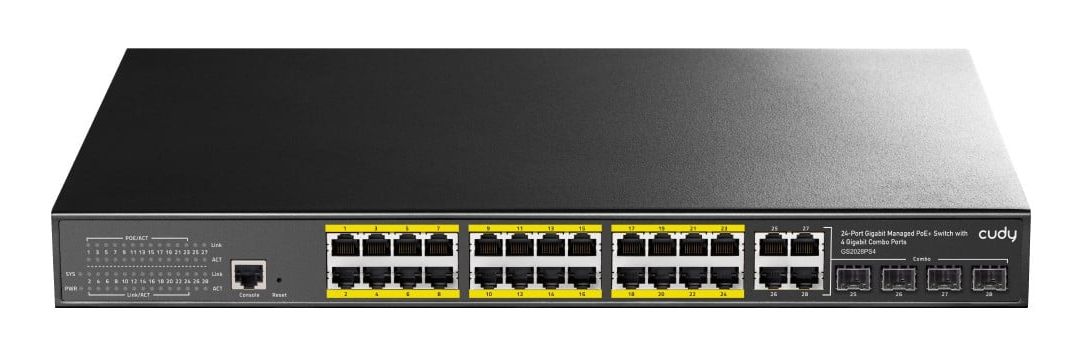

Cudy GS2028PS4 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Return period: 28 days

CODE: GS2028PS4-400W

Cudy GS2028PS4. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45...

Full description

€527.51

+ −

Vendor: TASK LTD

€527.51

Description
Reviews

Cudy GS2028PS4. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... DC input voltage: 52 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Cudy GS2028PS4 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Product symbol	GS2028PS4-400W
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Cudy
Package sizes (HxWxL)	45 x 445 x 285 mm
Weight & dimensions
Height	45.00 millimeter
Width	445.00 millimeter
Depth	285.00 millimeter
Power
Power source	AC
Surge protection voltage	15.00 KV
AC input voltage	110 - 240 V
DC input voltage	52 V
Data transmission
Packet buffer memory	4.00 MB
Switching capacity	56.00 Gb/s
MAC address table	8000 entries
Forwarding rate	41.66 Mpps
Protocols
Management protocols	SSHv1/2, SNMP V1/V2/V3, RMON v1
Packaging data
Package depth	350.00 millimeter
Package height	120.00 millimeter
Package width	470.00 millimeter
Package type	Box
Design
Form factor	1U
Housing material	Metal
LED indicators	Activity, Link, Power, System
Product color	Black
Network
Networking standards	IEEE 802.1Q IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3u IEEE 802.3x
Virtual LAN features	MAC address-based VLAN Voice VLAN
Cable types supported	Cat3 Cat4 Cat5 Cat5e Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Performance
Mean time between failures (MTBF)	100000.00 h
Flash memory	16.00 MB
Internal memory	128.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Multicast features
Multicast Listener Discovery (MLD) snooping	v1/2/3
Multicast features	Multicast traffic suppression
Security
Authentication type	ieee_802_1x tacacs_
Queue scheduling algorithms	Strict Priority Queue (SPQ) Weighted Round Robin (WRR)
Authentication	Port-based authentication
Optical fiber
Wavelength	1550.00 nm
Fiber type	Multi-mode
Maximum transfer distance (Single-mode)	120000.00 meter
Maximum transfer distance (Multi-mode)	2000.00 meter
Transmission distance (max)	120.00 kilometer
Management features
Switch layer	L2
Switch type	Managed
