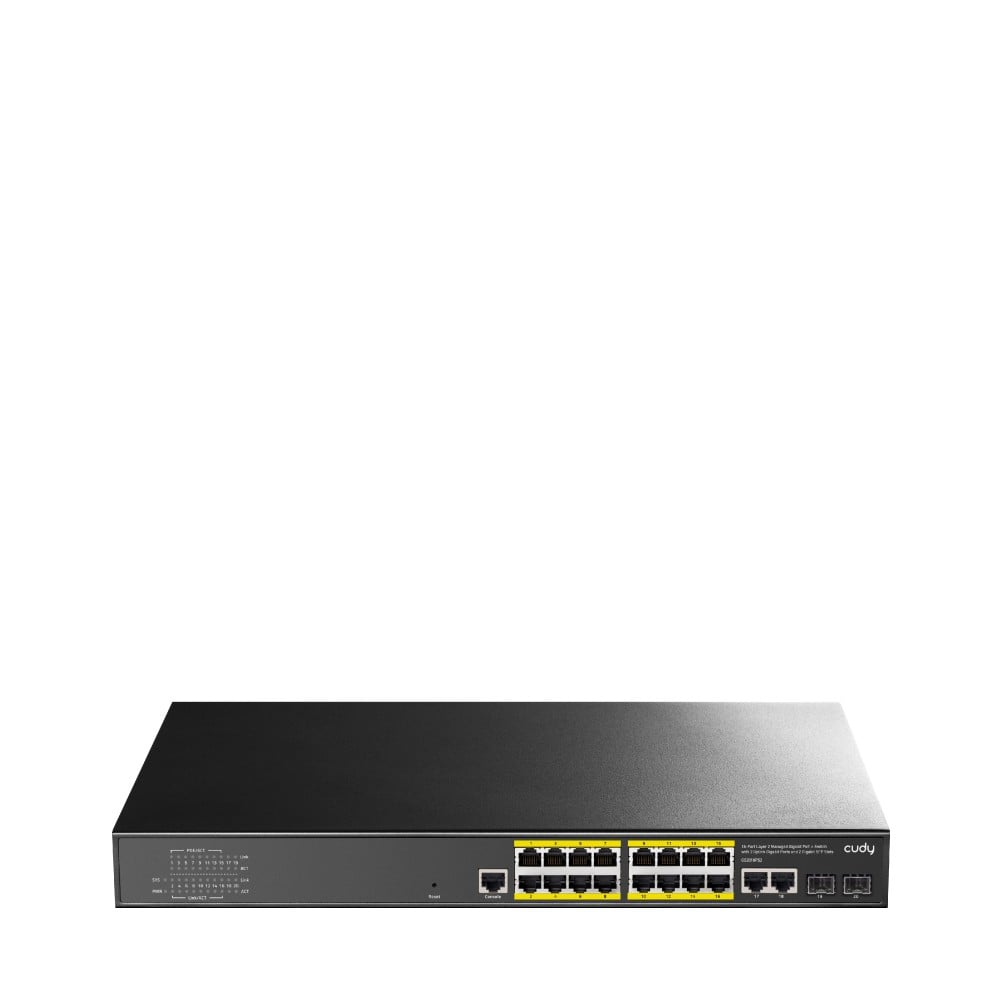

Cudy GS2018PS2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Return period: 28 days

CODE: GS2018PS2-200W

Cudy GS2018PS2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45...

Full description

€404.73

+ −

Vendor: TASK LTD

€404.73

Description
Reviews

Cudy GS2018PS2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Cudy GS2018PS2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Product symbol	GS2018PS2-200W
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Cudy
Package sizes (HxWxL)	500 x 300 x 90 mm
Weight gross	4.20 kg
Power
Power source	AC
Surge protection voltage	15.00 KV
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Data transmission
Packet buffer memory	4.00 MB
Switching capacity	40.00 Gb/s
MAC address table	8000 entries
Forwarding rate	19.76 Mpps
Protocols
Management protocols	HTTP, HTTPS, Telnet, SSH V1/V2, SNMP V1/V2/V3, RMON V2
Design
Form factor	1U
LED indicators	Activity, Link, PoE, Power, System
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3i IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Port-based VLAN Voice VLAN
Cable types supported	Cat3 Cat4 Cat5 Cat5e Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Performance
Mean time between failures (MTBF)	50000.00 h
Flash memory	16.00 MB
Internal memory	128.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	200.00 W
Power over Ethernet (PoE) power per port	30.00 W
Multicast features
Multicast Listener Discovery (MLD) snooping	v1/v2
Multicast features	Multicast traffic suppression
Security
Authentication type	ieee_802_1x radius
Queue scheduling algorithms	PQ + WRR
Packet filtering	Y
MAC address entries	Dynamic MAC address entries Static MAC address entries
Security algorithms	HTTPS SSH SSH-2
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Management features
Switch layer	L2
Switch type	Managed
