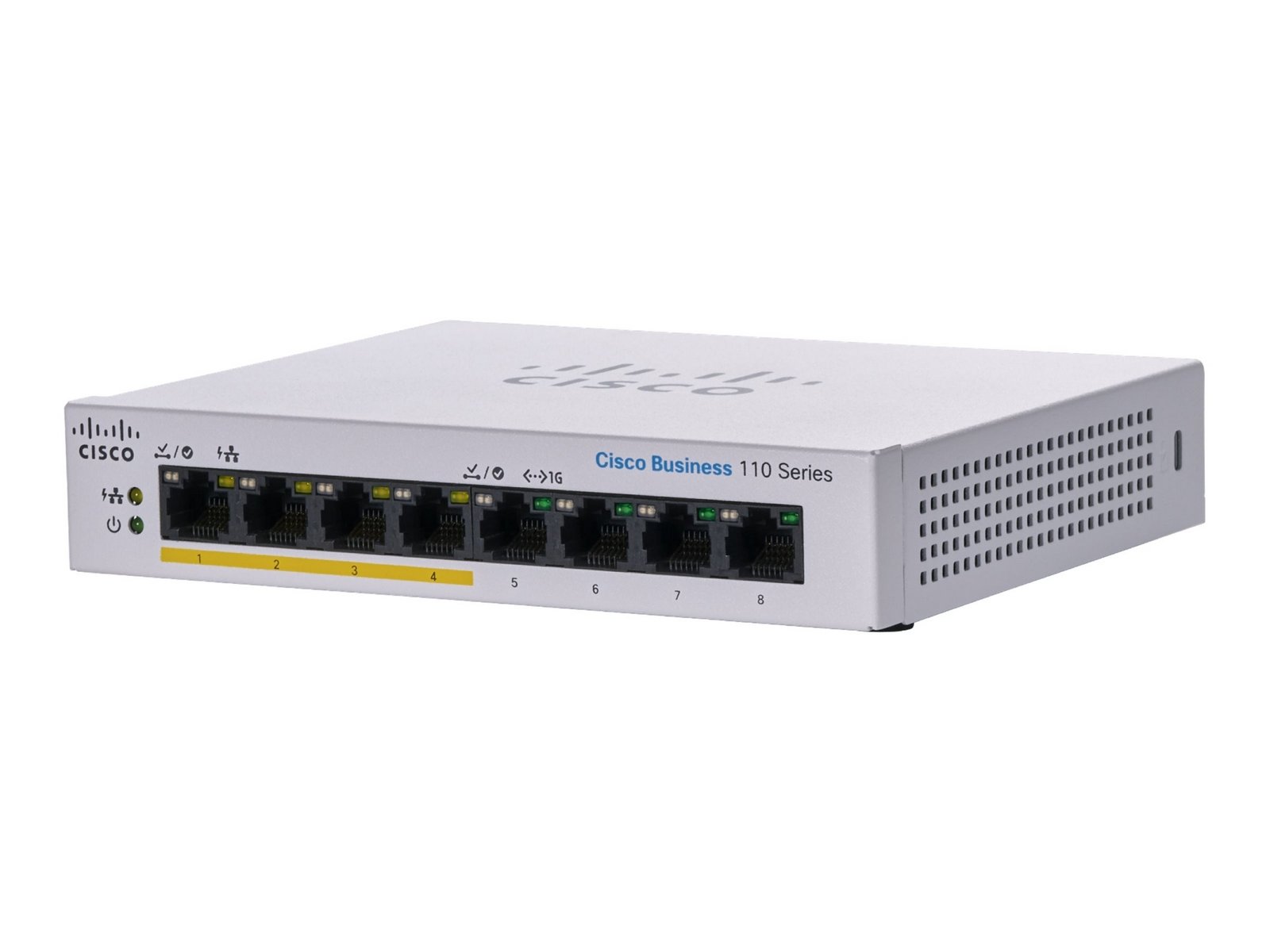

Cisco CBS110-8PP-D-EU Unmanaged 8-port GE, (4 support PoE with 32W power budget), Desktop, Ext PS

Write a review

€156.00

Vendor: TASK LTD

Return period: 28 days

CODE: CBS110-8PP-D-EU

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Cisco CBS110-8PP-D. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)

Basic data
Item name	Cisco CBS110-8PP-D-EU Unmanaged 8-port GE, (4 support PoE with 32W power budget), Desktop, Ext PS
Product symbol	CBS110-8PP-D-EU
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Cisco
Package sizes (HxWxL)	230 x 80 x 400 mm
Weight gross	1.70 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	30.00 millimeter
Width	160.00 millimeter
Depth	129.00 millimeter
Weight	550.00 gram
Power
Input current	1.25 A
DC input voltage	48 V
Data transmission
Switching capacity	16.00 Gb/s
MAC address table	8192 entries
Forwarding rate	11.9 Mpps
Certificates
Certification	UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A, FCC B
icecat_automatic_48024_76	CE
Sustainability
Sustainability certificates	CE
Operational conditions
Heat dissipation	130.34
Design
LED indicators	Yes
Product color	Gray
Network
Networking standards	IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3az IEEE 802.3u IEEE 802.3x
Cable types supported	Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Mean time between failures (MTBF)	465437.00 h
Processor frequency	400.00 MHz
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	32.00 W
Security
Queue scheduling algorithms	Weighted Round Robin (WRR)
Management features
Switch layer	L2
Switch type	Unmanaged
