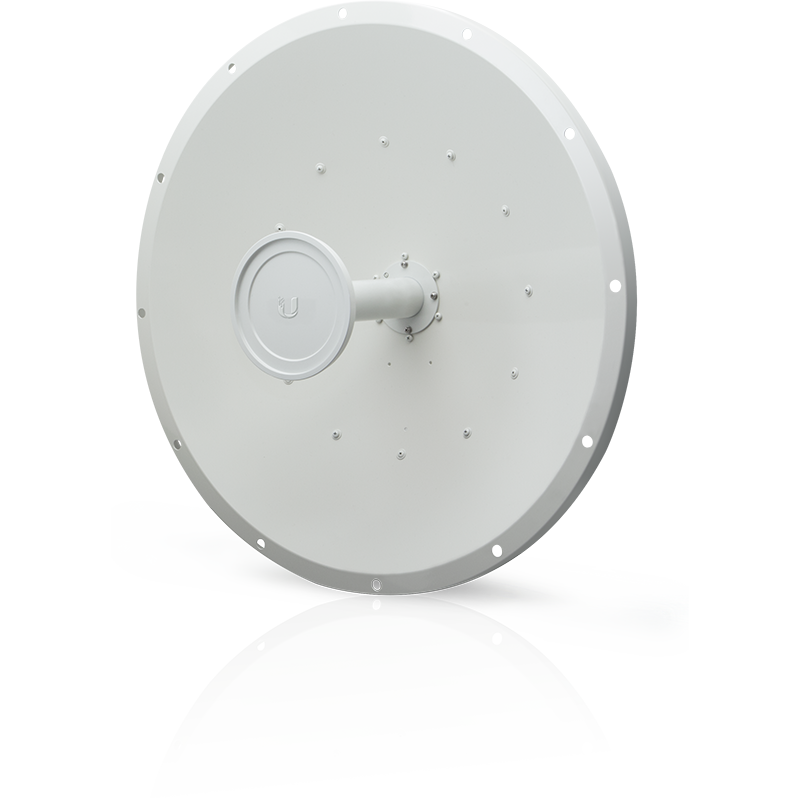

Ubiquiti RD-5G34 - a reliable RocketDish device
The Ubiquiti RD-5G34 from the RocketDish series is a highly reliable, innovative and high quality device.
The gain of the dual-polarity directional parabolic antenna is 34 dBi.
Work
The device works in the 5.15 - 5.85 GHz band. The Ubiquiti device is intended to work in systems with 802.11n standard devices.
Use
The RD-5G34 directional antenna can be used to create efficient Point-to-Point links.
Construction
The device consists of durable components which translates into reliability and resistance.
Easy installation
The design of the antenna is aimed at installation without tools. The deployment is intuitive and fast.
Key features
- works in the 5 GHz band
- maximum gain of the antenna 34 dBi
- Dual Linear polarisation
- airMAX technology
- sturdy construction
- 1050 x 1050 x 421 mm size
Comparison
 |
 |
 |
 |
|
| RD-2G24 | RD-3G26 | RD-5G30 | RD-5G34 | |
| FREQUENCY | 2.4 GHz | 3 GHz | 5 GHz | 5 GHz |
| GAIN | 24 dBi | 26 dBi | 30 dBi | 34 dBi |
| DIMENSIONS | 650 x 650 x 295 mm | 650 x 650 x 300 mm | 650 x 650 x 304 mm | 1050 x 1050 x 421 mm |
| POLARIZATION | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear |
*Dimensions exclude pole mount and Rocket (Rocket sold separately)
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
| Basic data | |
| Item name | Ubiquiti RD-5G34 Networks airMAX network antenna Directional antenna 34 dBi |
| Product symbol | RD-5G34 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 240 x 1100 x 1100 mm |
| Weight gross | 22.50 kg |
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Packaging content | |
| Quantity per pack |
|
| Features | |
| Antenna type |
|
| Mounting |
|
| Purpose |
|
| Product color |
|
| Performance | |
| Frequency band |
|
| Antenna gain level (max) |
|
| Horizontal beam width |
|
| Vertical beam width |
|
