Ubiquiti RD-5G30-LW efficient solution with a perfected design
The Ubiquiti RD-5G30-LW is a directional antenna with a light design. It works in the 5 GHz band which allows for the creation of efficient connections.
The Ubiquiti RD-5G30-LW creates efficient and long distance radio links which use the MIMO 2x2 technology and work in the 5 GHz band.
Construction

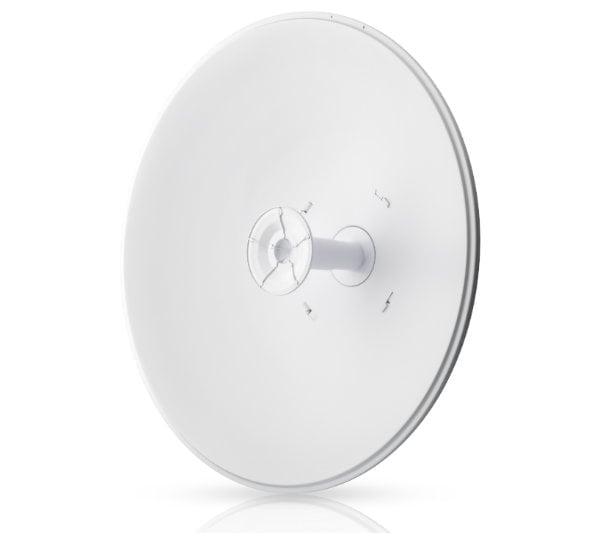

The RocketDish 5G30-LW is a lighter version of the popular RD-5G30 solution. It weighs only 7.4 kg. Its innovative case is built from an alloy resistant to corrosion and other unwanted processes.
Build
High resistance to unfavourable weather conditions leads to a long, problem-free life cycle. The antenna's industrial design is innovative. It works perfectly where reliability and efficient problem-free functioning is required.
Easy installation
The Ubiquiti antenna is distinguished by easy installation with Rocket. It does not require the use of any specialised tools. The device is equipped with a handle which allows for precise setting up of the antenna.
Use
The device is used e.g. to create Point-to-Point and Point-to-Multipoint connections.
Key features
- works in the 5 GHz band
- 30 dBi gain
- Dual Linear polarisation
- light construction
- easy installation
Comparison
| RD-2G24 | RD-3G26 | RD-5G30 | RD-5G30-LW | RD-5G34 | |
| FREQUENCY | 2.4 GHz | 3 GHz | 5 GHz | 5 GHz | 5 GHz |
| GAIN | 24 dBi | 26 dBi | 30 dBi | 30 dBi | 34 dBi |
| POLARIZATION | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear |
| Max. VSWR | 1.6:1 | 1.4:1 | 1.4:1 | 1.6:1 | 1.4:1 |
| F/B Ratio | 28 dB | 33 dB | 34 dB | 30 dB | 42 dB |
| Dimensions* | 650 x 650 x 295 mm | 650 x 650 x 300 mm | 650 x 650 x 304 mm | 650 x 650 x 386 mm | 1050 x 1050 x 421 mm |
* Dimensions exclude pole mount and Rocket (Rocket sold separately)
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
| Basic data | |
| Item name | Ubiquiti RD-5G30-LW Networks Antennen network antenna Directional antenna 30 dBi |
| Product symbol | RD-5G30-LW |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 400 x 800 x 800 mm |
| Weight gross | 19 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Features | |
| Antenna type |
|
| Product color |
|
| Performance | |
| Frequency band |
|
| Antenna gain level (max) |
|
