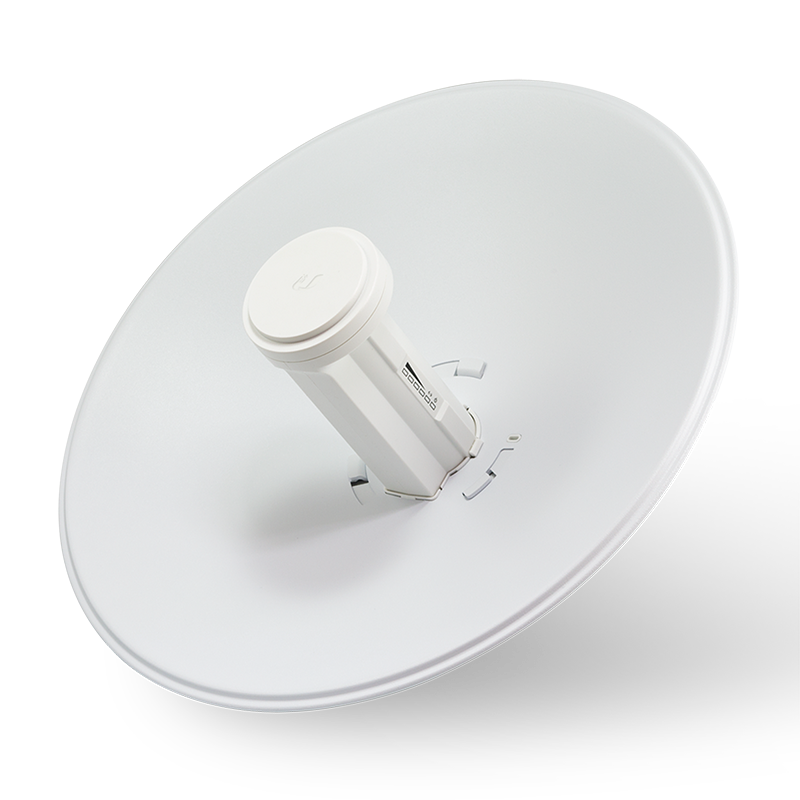

Ubiquiti NanoBeam PBE-M5-300 radio system
The Ubiquiti NanoBeam PBE-M5-300 radio system works in the 5 GHz band and complies with the 802.11n MIMO 2x2 standard.
This product is equipped with a 560 MHz Atheros MIPS 74KC processor. The device uses 64 MB internal memory and 8 MB flash drive memory.
Construction
Its perfected design allows it to be used in areas with high interference levels. By integrating the antenna emitter with the radio module/access point the producer created a new, versatile quality. It can be used at temperatures ranging from -40 to 70 degrees Celsius.
Antennas
The dual band 300 mm diameter antenna is characterised by a maximum gain of 22 dBi. The device is powered by PoE. It is also equipped with 1 Ethernet 10/100 Mb/s port. The device uses InnerFeed technology which results in an increase in bandwidth and interference resistance.
Key features
- works in the 5 GHz band
- 150 Mbps bandwidth
- 22 dBi antenna gain
- 20 km range
- durable construction
- router or bridge mode
- easy installation
- InnerFeed technology
- AirMax technology
Installation
The PBE-M5-300 can be installed effortlessly and quickly. The installation of the AF-5X is easy and intuitive.
Use
This device is very versatile. It can work in Router and Bridge modes.
Comparison
|
|
|
PBE-M5-300 |
|
|
| Frequency Band | 5 GHz | 5 GHz | 5 GHz | 2.4 GHz |
| Antenna Gain | 29 dBi | 25 dBi | 22 dBi | 18 dBi |
| Dish Reflector | 620 mm | 400 mm | 300 mm | 400 mm |
| Network Interface | 10/100/1000 | 10/100/1000 | 10/100 | 10/100 |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 150+ Mbps |
| Range | 30+ km | 25+ km | 20+ km | 20+ km |
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
| Basic data | |
| Item name | Ubiquiti Networks PBE-M5-300 network antenna Sector antenna 22 dBi |
| Product symbol | PBE-M5-300 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 150 x 330 x 330 mm |
| Weight gross | 1.50 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Certificates | |
| Certification |
|
| icecat_automatic_48024_76 |
|
| Packaging content | |
| Quantity per pack |
|
| Features | |
| Antenna type |
|
| Survival wind speed |
|
| Power handling |
|
| Product color |
|
| Performance | |
| Frequency band |
|
| Antenna gain level (max) |
|
