Ubiquiti Networks AP-5AC-90-HD network antenna Sector antenna RP-SMA 22 dBi

Write a review
700.26
TASK LTD
28 days
AP-5AC-90-HD
IN STOCK
+

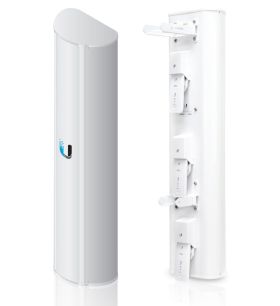

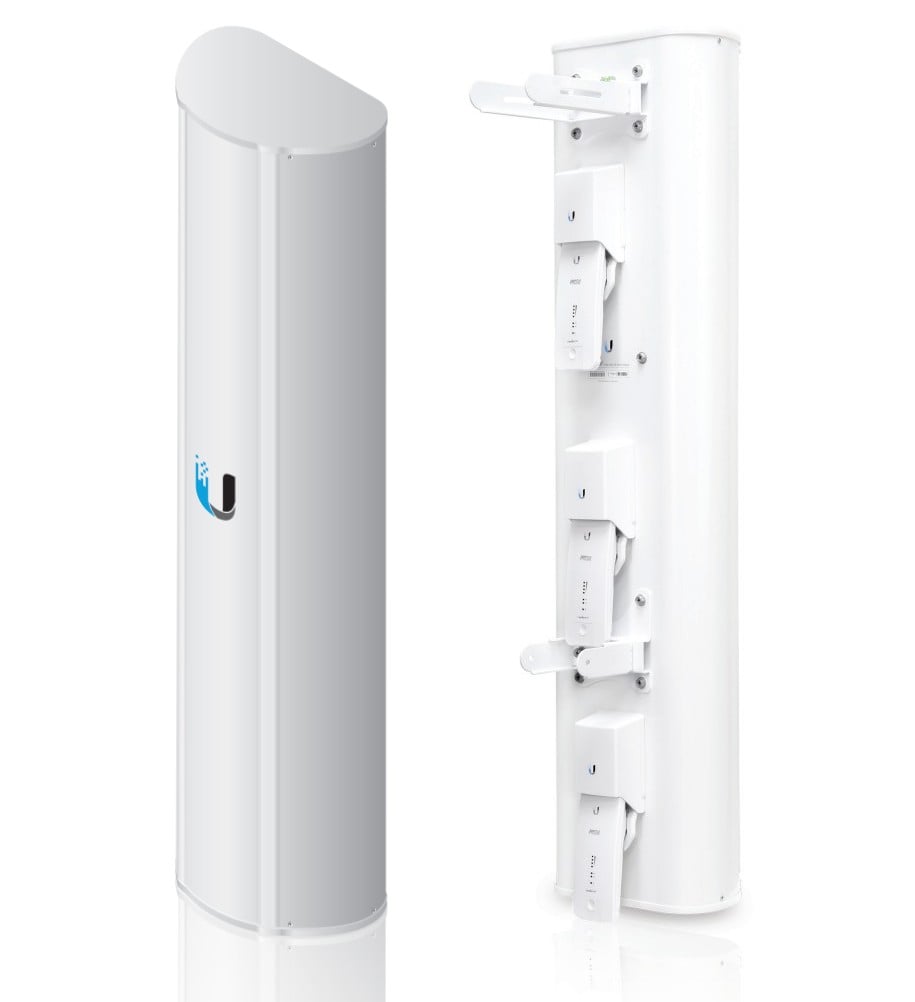

airPrism AP-5AC-90-HD – high capacity in increased network density locations

The Ubiquiti AP-5AC-90-HD sector antenna combines high quality and durability. The device complements the airMAX series.

The solution offers high capacity with minimum cost of installation and deployment. It is compatible with the Rocket5ac Prism (sold separately). Up to three Rocket5ac Prism radios can be mounted on one airPrism antenna.





 width=



Installation

The installation does not require any additional specialised tools thanks to appropriate construction. The device successfully protects from electromagnetic interference.



 width=

Use

The AP-5AC-90-HD sector antenna is an innovative solution for Point-to-Multipoint applications. It guarantees interference isolation and high capacity.



 width=



 width=





Construction

The device is based on durable components which results in quality and reliability as well as resistance to unfavourable weather conditions.



 width=



Key features

  • works in the 5 GHz band
  • 22 dBi gain
  • Dual-Linear polarisation
  • 322.6 x 201.5 x 1300 mm size
  • durable construction

 width=

Manufacturer's content

 Read more in the manufacturer's documentation

 Read the manual



Specifications



Basic data
Item nameUbiquiti Networks AP-5AC-90-HD network antenna Sector antenna RP-SMA 22 dBi
Product symbolAP-5AC-90-HD
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Antennas
Hierarchy by MANUFACTURER
  • Ubiquiti
Package sizes (HxWxL)300 x 400 x 1530 mm
Weight gross16.50 kg
Logistics data
Harmonized System (HS) code
  • 85177100
Weight & dimensions
Height
  • 1300.00 millimeter
Width
  • 322.60 millimeter
Depth
  • 201.50 millimeter
Weight
  • 13100.00 gram
Certificates
Certification
  • CE, FCC, IC
Packaging content
Quantity per pack
  • 1.00 pcs
Features
Antenna type
  • Sector antenna
Survival wind speed
  • 200.00 km/h
Isolation
  • 30.00 dB
Purpose
  • Outdoor
Antenna connector type
  • RP-SMA
Polarization
  • Dual polarization
Voltage Standing Wave Ratio (VSWR)
  • 1.75:1
Product color
  • White
Performance
Frequency band
  • 5.15 - 5.85 GHz
Antenna gain level (max)
  • 22 dBi
Horizontal beam width
  • 30.00 degrees
Vertical beam width
  • 30.00 degrees
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
