Ubiquiti Networks AMO-5G10 network antenna Sector antenna 10 dBi

Write a review
141.67
TASK LTD
28 days
AMO-5G10
IN STOCK
+

AMO-5G10 - modern Ubiquiti solution

The use of the Ubiquiti AMO-5G10 antenna allows for an increase in the range and access point data transmission speed.

The antenna belongs to the airMax series which includes high capacity, easy installation devices. Thanks to its durable design it works perfectly in unfavourable weather conditions.



 width=

Parameters

The Ubiquiti AMO-5G10 omnidirectional antenna works in the 5 GHz band. The maximum gain of the product is 10 dBi and the standing wave ratio is 1.6:1.





 width=

Use

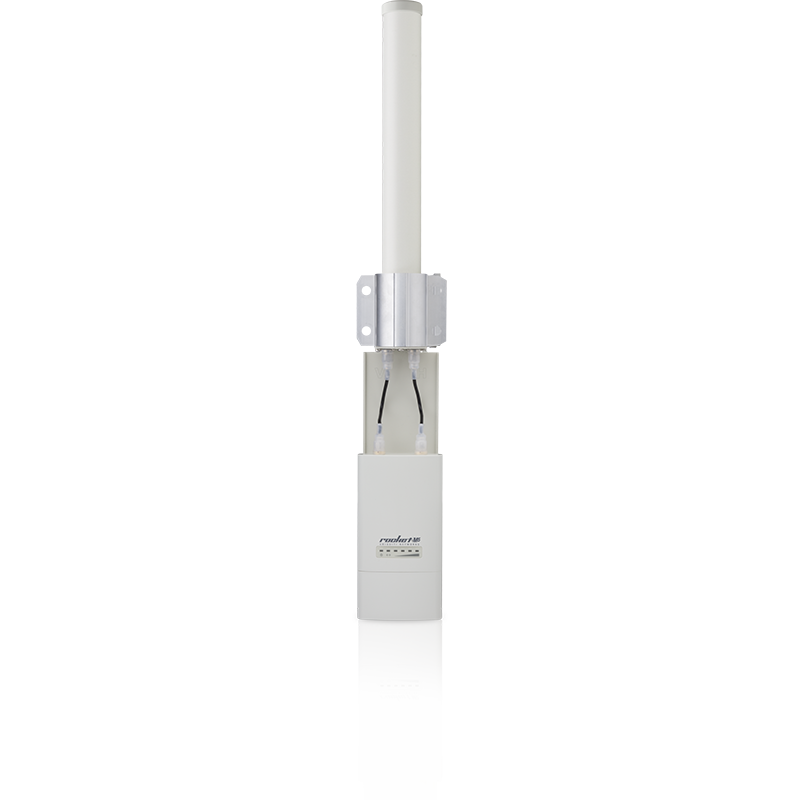

The AMO-5G10 antenna is compatible with Air Max 802.11n devices. In connection with Rocket M series products (sold separately) the device creates a 2x2 MIMO Point-to-MultiPoint base station.



 width=



Innovation

The device was designed on the basis of the latest solutions which led to perfect parameters. This is why it meets the requirements of even the most demanding users. The device is EN 302 326 DN2 certified.



 width=



Key features

  • works in the 5 GHz band
  • maximum gain of the antenna 10 dBi
  • Dual-Linear polarisation
  • 2x2 MIMO
  • sturdy construction

 width=

Comparison

  AMO-2G10 AMO-2G13 AMO-3G12 AMO-5G10 AMO-5G13
   width=  width=  width=  width=  width=
FREQUENCY 2.4 GHz 2.4 GHz 3 GHz 5 GHz 5 GHz
GAIN 10 dBi 13 dBi 12 dBi 10 dBi 13 dBi
DIMENSIONS* 1030 x 122 x 84 mm 1390 x 122 x 105 mm 1012 x 122 x 105 mm 582 x 90 x 65 mm 799 x 90 x 65 mm
POLARIZATION Dual-Linear Dual-Linear Dual-Linear Dual-Linear Dual-Linear



Manufacturer's content

 Read more in the manufacturer's documentation

 Read the manual



Specifications



Basic data
Item nameUbiquiti Networks AMO-5G10 network antenna Sector antenna 10 dBi
Product symbolAMO-5G10
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Antennas
Hierarchy by MANUFACTURER
  • Ubiquiti
Package sizes (HxWxL)100 x 150 x 650 mm
Weight gross1.40 kg
Logistics data
Harmonized System (HS) code
  • 85177100
Weight & dimensions
Height
  • 65.00 millimeter
Width
  • 582.00 millimeter
Depth
  • 90.00 millimeter
Weight
  • 680.00 gram
Certificates
Certification
  • EN 302 326 DN2
Packaging content
Quantity per pack
  • 1.00 pcs
Features
Antenna type
  • Sector antenna
Mounting
  • Wall
Purpose
  • Outdoor
Polarization
  • Dual polarization
Voltage Standing Wave Ratio (VSWR)
  • 1.6:1
Product color
  • White
Performance
Frequency band
  • 5 GHz
Antenna gain level (max)
  • 10 dBi
Horizontal beam width (5 GHz)
  • 12.00 degrees
Vertical beam width (5 GHz)
  • 4.00 degrees
