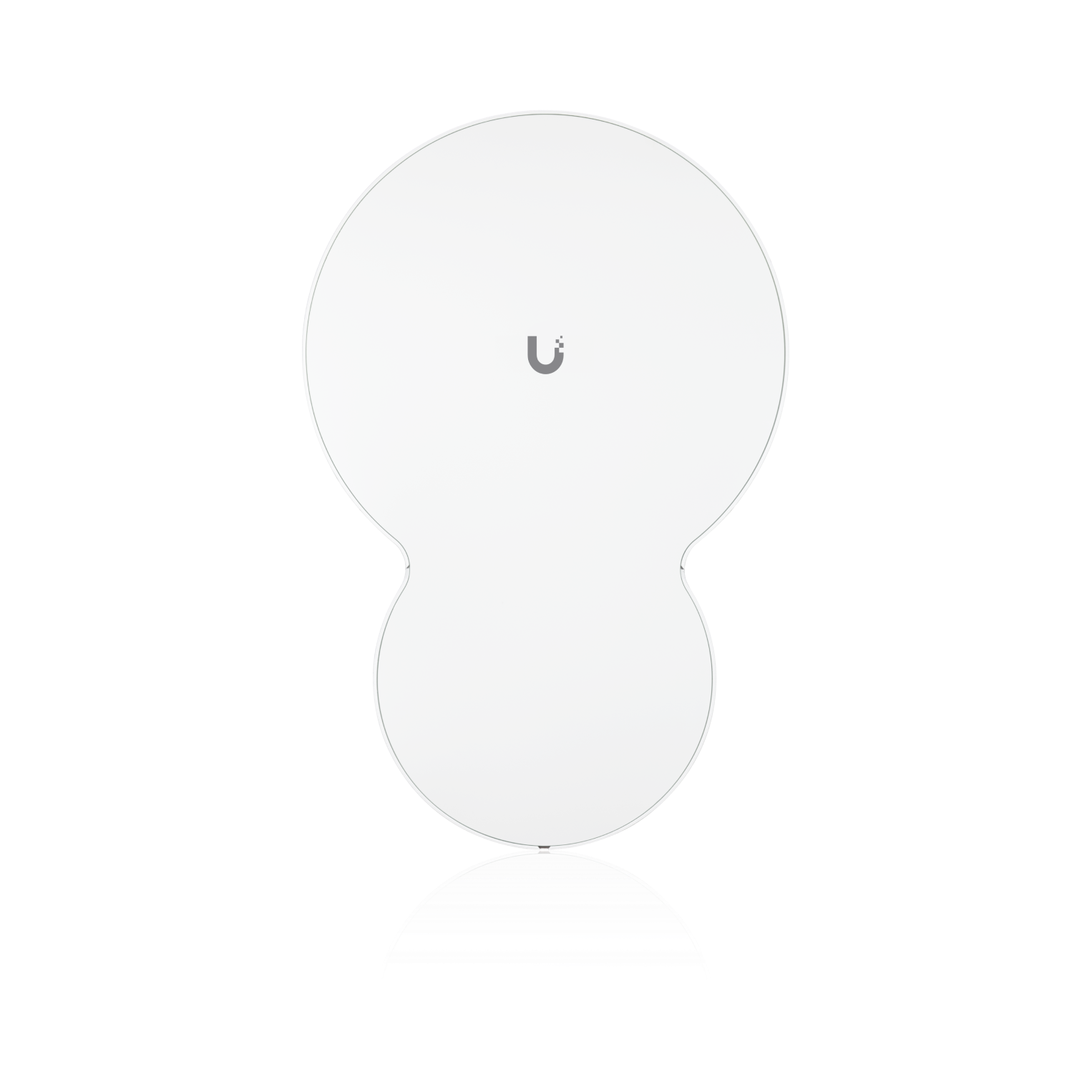

Ubiquiti Networks AF-24 network antenna(AF-24)

Write a review
1,850.73
TASK LTD
28 days
AF-24
IN STOCK
+

Ubiquiti Networks AF-24 network antenna. Air Fiber series flagship product

The airFiber AF-24 device works on the 24 GHz free frequency which does not require licences, at the same time guaranteeing high efficiency. AF-24 includes a built-in GPS receiver. It also uses AirSync technology which allows for installation in places with more radio links without causing interference.

Innovation

The use of innovative solutions results in a wider range of wireless services with the addition of new areas.

Use

The Ubiquiti AF-24 radio is used to create Point-to-Point links. Its range is 13 km.

Antennas

The device uses two antennas – one of them (using 33 dBi gain) is the sending unit, the other one (38 dBi) is the receiver.

Work

The device is characterised by a maximum connection speed up to 1000 Mbit/s. The AF-24 device works on the 24 GHz band. Additionally the airFiber AF-24 uses 16-QAM, 64-QAM, QPSK modulation. When it comes to protection the product features 128-bit AES encryption.

Additional Product Notes

  1. Works on the 24 GHz band
  2. 1.4+ Gbps bandwidth
  3. 13 km range
  4. Sturdy construction
  5. Modern design


Basic data
Item nameUbiquiti Networks AF-24 network antenna(AF-24)
Product symbolAF-24
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Antennas
Hierarchy by MANUFACTURER
  • Ubiquiti
Package sizes (HxWxL)400 x 710 x 520 mm
Weight gross17.50 kg
Logistics data
Harmonized System (HS) code
  • 85177100
Weight & dimensions
Height
  • 649.00 millimeter
Width
  • 426.00 millimeter
Depth
  • 303.00 millimeter
Weight
  • 10500.00 gram
Power
Power consumption (max)
  • 40.00 W
Certificates
Certification
  • CE, FCC, IC
Features
LED indicators
  • Yes
Product color
  • White
Performance
Modulation
  • 16-QAM
  • 64-QAM
  • QPSK
Frequency band
  • 24 GHz
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
