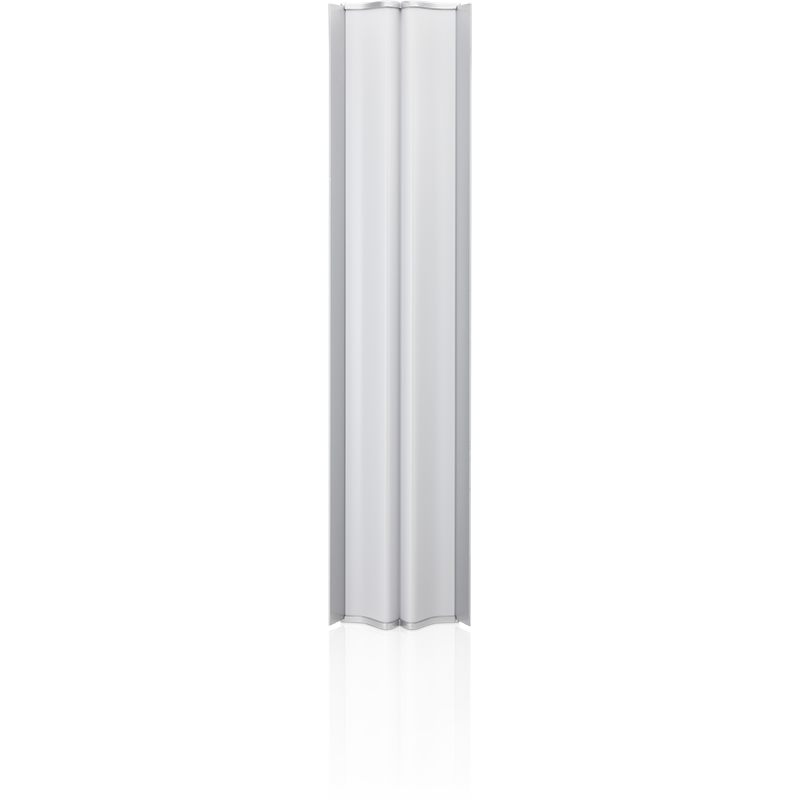

Ubiquiti AM-5AC21-60 – innovation tailored to your needs
The AM-5AC21-60 is a modern deflector device that guarantees high capacity, because it uses airMax ac technology.
The AM-5AC21-60 is a new generation of AirMax 2x2 MIMO 802.11ac devices. It provides scalability and perfect isolation. An innovative deflector construction with lowered side-leaves reduces the interference generated by other emitters placed in the vicinity.
Reliability
The device is designed to guarantee the highest gain and capacity in Point-to-MultiPoint networks. The antenna has an increased wave propagation. The maximum gain of the antenna is 21 dBi. The device is intended for wall mounting. It is a high quality, reliable solution.
Durable construction
The device is distinguished by an increased resistance to unfavourable weather conditions. A durable construction means that it is valued for its reliability. It works well in high network density locations.
Key features
- works in the 5 GHz band
- 21 dBi maximum gain
- Dual Linear polarisation
- 2x2 MIMO
- airMax ac
- 750 x 173 x 78 mm size
Use
The AM-5AC21-60 is used to create Point-to-MultiPoint links.
Comparison
AM-5AC21-60 |
|
|
FREQUENCY | 5 GHz | 5 GHz |
GAIN | 21 dBi | 22 dBi |
DIMENSIONS* | 750 x 173 x 78 mm | 750 x 215 x 94 mm |
BEAMWIDTH | 60° | 45° |
POLARIZATION | Dual-Linear | Dual-Linear |
*Dimensions exclude pole mount and Rocket radio (Rocket sold separately)
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
Basic data | |
Item name | Ubiquiti AM-5AC21-60 Networks airMAX ac 2x2 network antenna 21 dBi |
Product symbol | AM-5AC21-60 |
Hierarchy by CATEGORY |
|
Hierarchy by MANUFACTURER |
|
Package sizes (HxWxL) | 300 x 220 x 170 mm |
Weight gross | 5.50 kg |
Logistics data | |
Harmonized System (HS) code |
|
Weight & dimensions | |
Height |
|
Width |
|
Depth |
|
Weight |
|
Packaging content | |
Quantity per pack |
|
Features | |
Mounting |
|
Polarization |
|
Voltage Standing Wave Ratio (VSWR) |
|
Product color |
|
Performance | |
Frequency band |
|
Antenna gain level (max) |
|
Horizontal beam width |
|
Vertical beam width |
|
