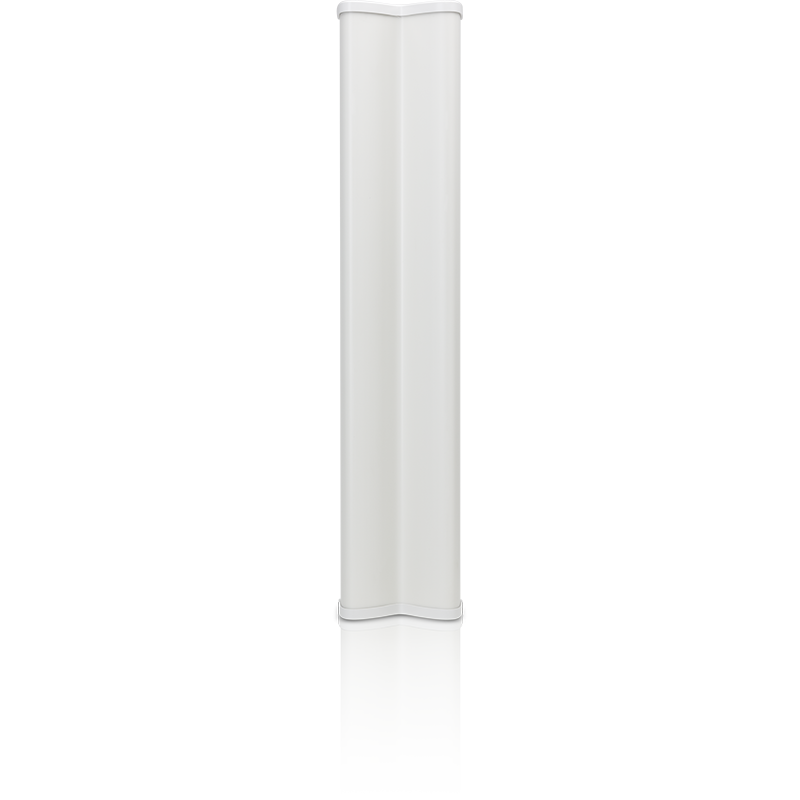

AM-2G15-120 - high class Ubiquiti sector antenna
The Ubiquiti AM-2G15-120 sector antenna is intended to operate with airMax devices that comply with the 802.11n standard. The use of high quality components results in device reliability.
The Ubiquiti AM-2G15-120 dual antenna works in the 2.3-2.7 GHz band. The maximum gain of the antenna is 15 dBi and the standing wave ratio is 1.5:1.
Installation
The device belongs to the AirMax series and integrates itself with Rocket M series products. The AM-2G15-120 is easy to install and does not require specialised tools in that process.
Innovation
The use of innovative solutions results in an optimal beam shape, high energy gain and appropriate separation. All of these features allow the antenna to be used in various environments.
Key features
- sector antenna
- works in the 2.4 GHz band
- 15 dBi gain
- 700 x 145 x 93 mm size
- dual linear polarisation
Use
The Ubiquiti AM-2G15-120 sector antenna works with Rocket M devices (sold separately) to create a base station.
Comparison
|
|
|
|
|
|
| FREQUENCY | 5 GHz | 5 GHz | 5 GHz | 5 GHz |
| GAIN | 16 dBi | 17 dBi | 19 dBi | 20 dBi |
| DIMENSIONS* | 367 x 63 X 41 mm | 367 x 63 x 41 mm | 700 x 135 x 73 mm | 700 x 135 x 70 mm |
| POLARIZATION | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear |
*Dimensions exclude pole mount and RocketM (RocketM sold separately)
|
AM-2G15-120 |
||||
|
|
|
|
|
|
| FREQUENCY | 900 MHz | 2.4 GHz | 2.4 GHz | 3 GHz |
| GAIN | 13 dBi | 16 dBi | 15 dBi | 18 dBi |
| DIMENSIONS* | 1290 x 290 x 134 mm | 700 x 145 x 79 mm | 700 x 145 x 93 mm | 735 x 144 x 78 mm |
| POLARIZATION | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear |
*Dimensions exclude pole mount and RocketM (RocketM sold separately)
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
| Basic data | |
| Item name | Ubiquiti AM-2G15-120 Networks Air Max Sector network antenna Sector antenna 15 dBi |
| Product symbol | AM-2G15-120 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 880 x 180 x 200 mm |
| Weight gross | 4 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Packaging content | |
| Quantity per pack |
|
| Features | |
| Antenna type |
|
| Polarization |
|
| Voltage Standing Wave Ratio (VSWR) |
|
| Product color |
|
| Performance | |
| Frequency band |
|
| Antenna gain level (max) |
|
| Horizontal beam width |
|
| Vertical beam width |
|
