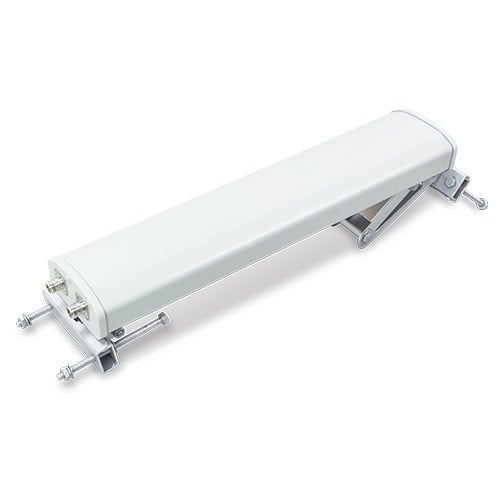

Planet ANT-SE17AD 2x2 MIMO 5GHz 17dBi Sector Antenna (Dual-Polarity, 90 degrees, N-type female co...

Write a review
201.16
TASK LTD
28 days
ANT-SE17AD
IN STOCK
+
PLANET ANT-SE17AD. Antenna gain level (max): 17 dBi, Frequency band: 5.15 - 5.85 GHz, Impedance: 50 Ω. Antenna type: MIMO directional antenna, Antenna connector type: N-type, Connector gender: Female. Power consumption (max): 200 W. Width: 4.49" (114 mm), Depth: 2.13" (54 mm), Height: 22.8" (580 mm)

Basic data
Item namePlanet ANT-SE17AD 2x2 MIMO 5GHz 17dBi Sector Antenna (Dual-Polarity, 90 degrees, N-type female connector x 2)
Product symbolANT-SE17AD
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Antennas
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)580 x 114 x 54 mm
Weight gross3 kg
Weight & dimensions
Height
  • 580.00 millimeter
Width
  • 114.00 millimeter
Depth
  • 54.00 millimeter
Weight
  • 3000.00 gram
Power
Power consumption (max)
  • 200.00 W
Features
Antenna type
  • MIMO directional antenna
Maximum operating distance
  • 5000.00 meter
Downtilt
  • 10.00 degrees
Survival wind speed
  • 216.00 km/h
Sidelobes level
  • 15.00 dB
Isolation
  • 28.00 dB
Antenna connector type
  • N-type
Polarization
  • Dual polarization
Voltage Standing Wave Ratio (VSWR)
  • 2
Connector gender
  • Female
Front to back ratio
  • 23.00 dB
International Protection (IP) code
  • IP67
Performance
Frequency band
  • 5.15 - 5.85 GHz
Antenna gain level (max)
  • 17 dBi
Impedance
  • 50.00 Ohm
Horizontal beam width
  • 90.00 degrees
Vertical beam width
  • 7.00 degrees
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
