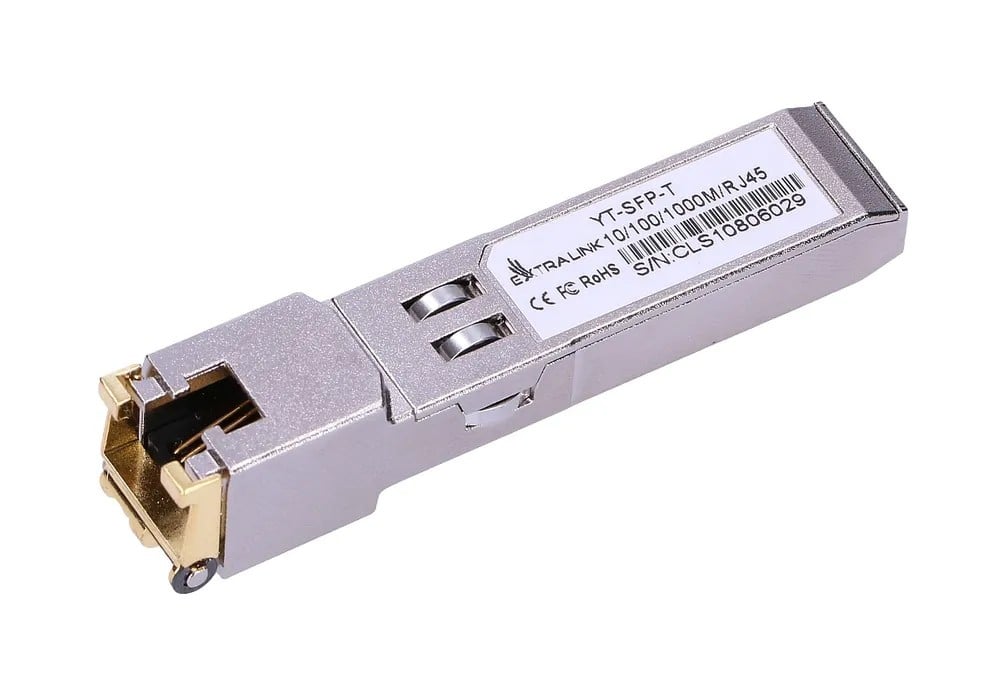

Extralink's cost-effective SFP RJ45 1.25G 100M module. The Extralink SFP RJ45 module with a throughput of 1000 Mb/s is a powerful and cost-effective device that complies with Gigabit Ethernet and 1000-BASE-T standards defined by IEEE 802. 3-2002 and IEEE 802.3ab. The SFP RJ45 cartridge supports a data rate of 1000 Mbps at to 100 meters for Category 5 Ethernet cable and a 1000 Mbps full duplex data link with 5-level pulse amplitude modulation (PAM). All four pairs in the cable are used with a symbolic speed of 250 Mbps for each pair. Extralink SFP RJ45 provides standard serial ID information in accordance with SFP MSA, which can be accessed with A0h address via 2-wire CMOS EEPROM serial protocol. The physical IC can also be accessed via the 2-wire serial bus at the address A0h. The SFP RJ45 module is compatible with most Gigabit SFP ports on network devices. The device has a fully metallic housing and therefore low EMI.
| Basic data | |
| Item name | Extralink SFP 1.25G | SFP to RJ45 Module | 1,25Gbps, 100/1000BASE-T, 100m |
| Product symbol | EX.2251 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 23 x 90 x 110 mm |
| Weight gross | 0.50 kg |
| Power | |
| Power consumption (typical) |
|
| Certificates | |
| Certification |
|
| icecat_automatic_48024_76 |
|
| Packaging content | |
| Quantity per pack |
|
| Operational conditions | |
| Minimum operating temperature |
|
| Maximum operating temperature |
|
| Performance | |
| Maximum data transfer rate |
|
| Ethernet interface type |
|
| Maximum transfer distance |
|
| SFP transceiver type |
|
| Interface type |
|
| Copper ethernet cabling technology |
|
